02 Node

Production - Node Log

Contents

Chapter 1: Requirements

Chapter 2: Adding new production

Chapter 1: Requirements

Resources, like Node Layer, must be defined under the Resources menu to be visible in Production, so make sure this is done before proceeding.

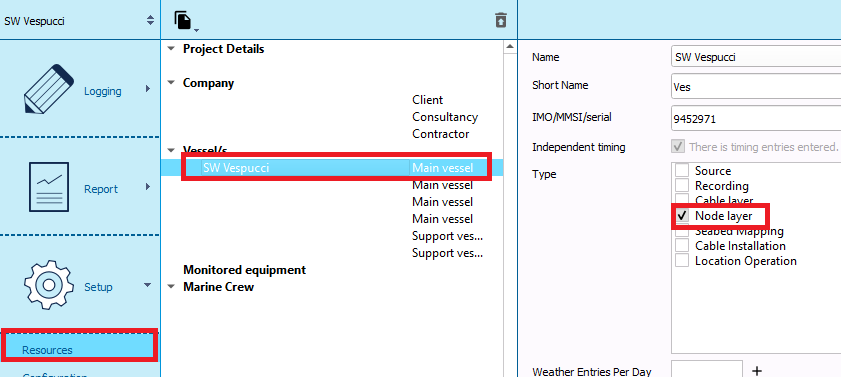

Go to Setup → Resources and add node layer to your vessel (or ROV, under monitored equipment)

Chapter 2: Adding new production

Node Log lets you log node production types deployment and recovery over your node preplot.

Go to Logging → Production → Vessel/s and select the correct vessel/ROV

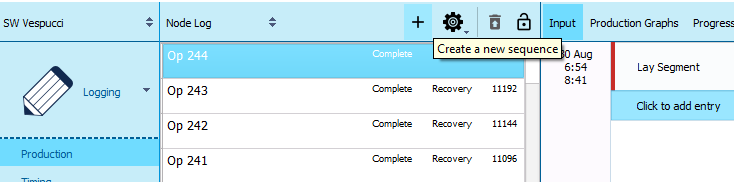

Use the “+” on the main toolbar to add a new node lay sequence

Assuming your nodes have a consistent station increment, node lay sequences can be created as a series of First Station/Start Good/End Good/Last Station entries, similar to the way that seismic source sequences can be defined.

Sequences can also be constructed as a series of individual Node Deployment and Node Recovery entries, each of which represents a single node, allowing for inconsistent station increments.

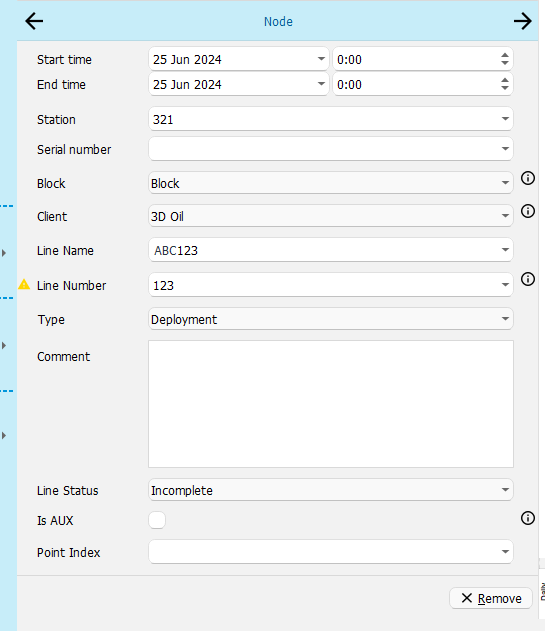

Each Node entry has several fields which need to be filled in

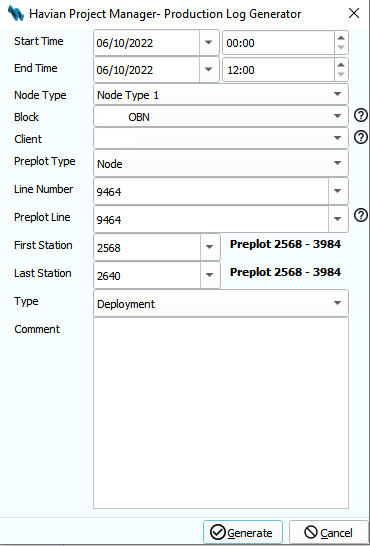

Use Generate Node Line Entries to auto automatically generate production events for a series of nodes

Finally populate the fields, before clicking Generate.
