01 Source

Production - Source log

Logging production types such as Prime/infill over your preplot

Contents

Chapter 1: Requirements

Chapter 2: Adding new production

Chapter 1: Requirements

Resources, like Source, must be defined under the Recourses menu to be visible in Production, so make sure this is done before proceeding.

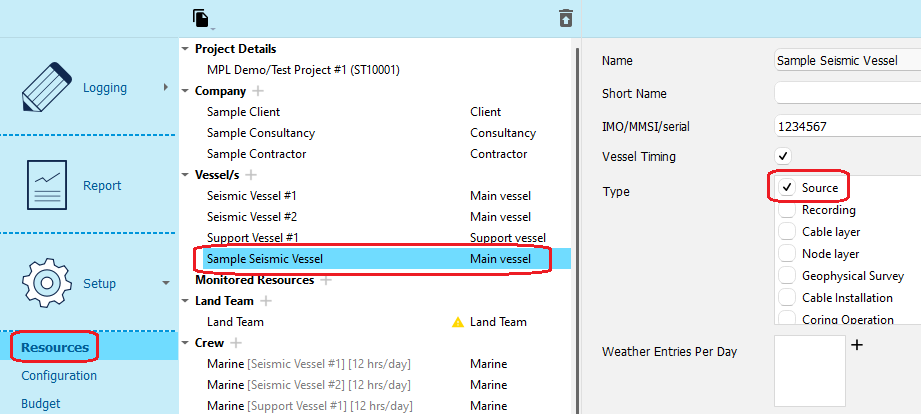

Go to Setup → Resources, and add Source to your vessel

Chapter 2: Adding new production

Go to Logging → Production → Source

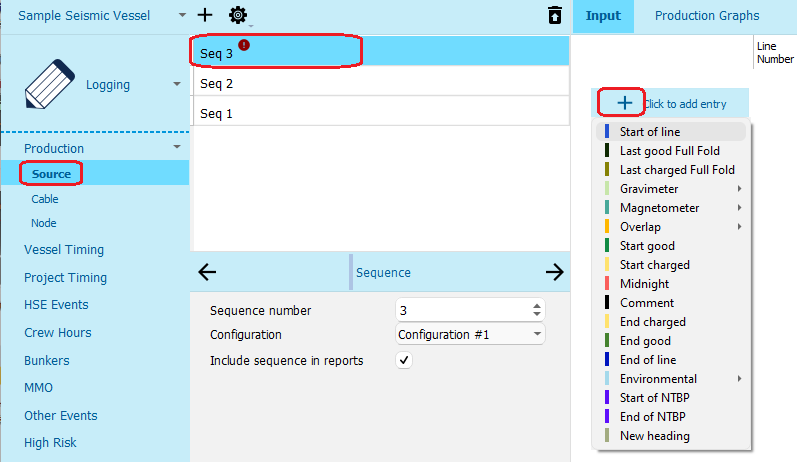

Click the “+” on the main toolbar to add a new sequence

Sequences are constructed as a series of production events which are built up on the right-hand side.

Click on the sequence, then the Click to add entry button.

Choose Start of line from the dropdown menu.

The Start of line entry should now be visible on the right-hand side.

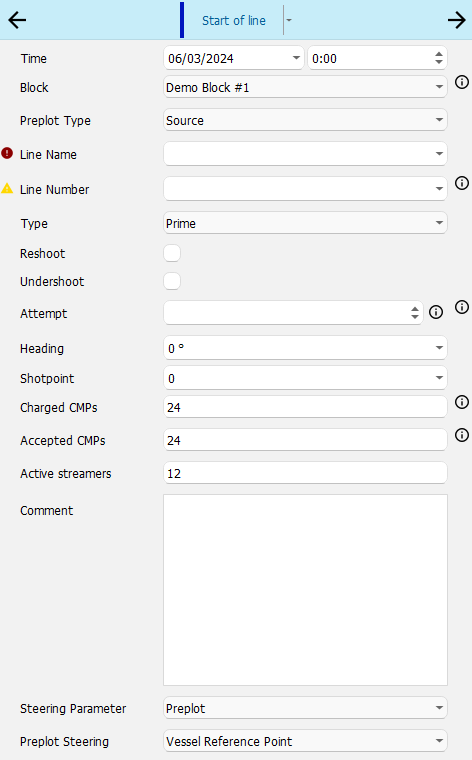

Set the Line number field, and make sure the other fields are entered

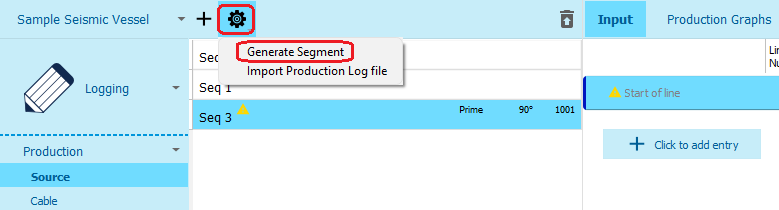

Use Generate Segment from the toolbar to automatically generate all the other line production events.

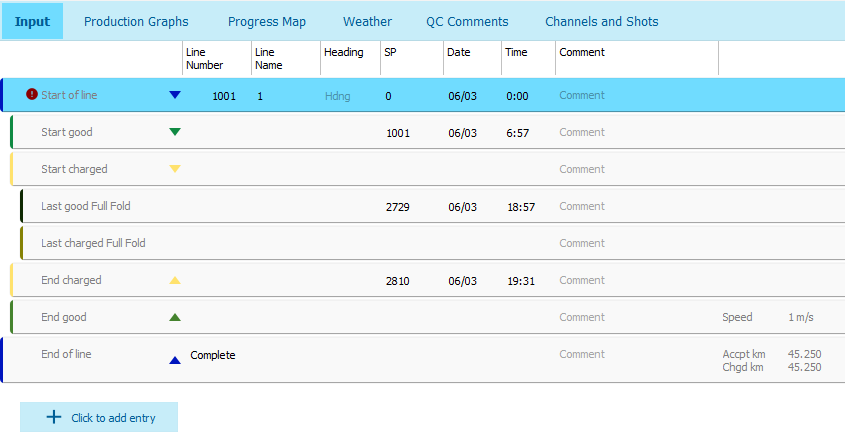

Good/Charged/Full fold production events will be generated based on your configuration.
