02 Areal Plots

Areal Plots

Contents

Chapter 1: The Attribute tree
Chapter 2: Data and Display adjustments

Chapter 1: The Attribute tree

Navigate to the Areal Plots by selecting it on the top toolbar within the QC area

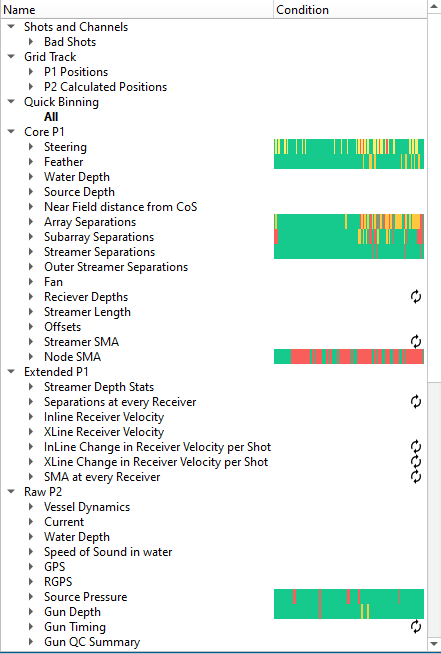

The Attribute tree on the left -hand side shows all the available attribute-types as the main branches.

Click on the arrows to open up the attributes-type branches to show all the available attributes, which can be clicked on to generate a display.

The colour bars next to the items show the sequence results of the conditions on each attribute with the lowest sequence numbers on the left.

Drag the attribute tree larger or hover a coloured square to get more detail.

Note: the rotating arrow icon next to a tree item shows that there are conditions still being calculated. When these are complete the colour bar will update.

Chapter 2: Data and Display adjustments

All these changes are local to your machine, and can be safely toggled, and reverted to the default.

Display settings - these apply to all attributes

Attribute settings and Modifications - these apply only to the attribute type you are currently displaying

For simple scale limit adjustments use the ‘Upper’ and ‘Lower’ boxes in Attribute Settings.

For more fine control of the colour palette, we suggest you set the Colour Palette Type to Shot Condition Result, which will colour the shots based on the condition severities you have set up, giving you complete control of the individual colour ranges.
